Our hermetic reciprocating refrigeration compressor adopts mature and reliable internal mechanical structure, with precise manufacturing process and stable compression performance. It efficiently compresses refrigerants such as R600a, R134a, R290 and R404a, featuring low vibration, ultra-low running noise and high COP energy efficiency. Widely used in household refrigerators, freezers, commercial chillers, ice makers and walk-in cold rooms, it serves as the core power component of the entire refrigeration system with long service life and excellent durability.

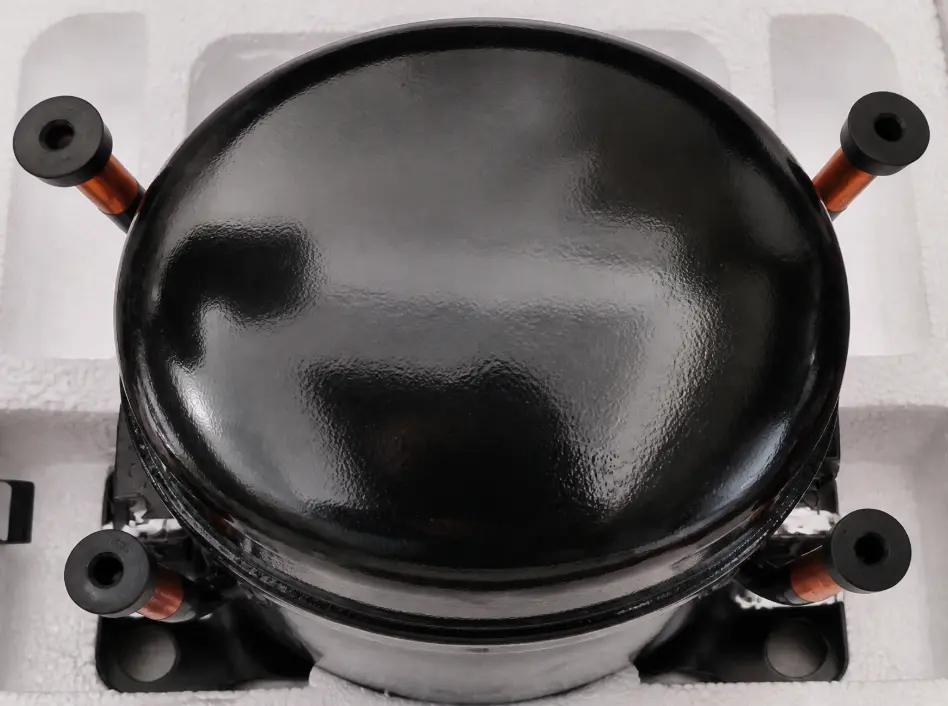

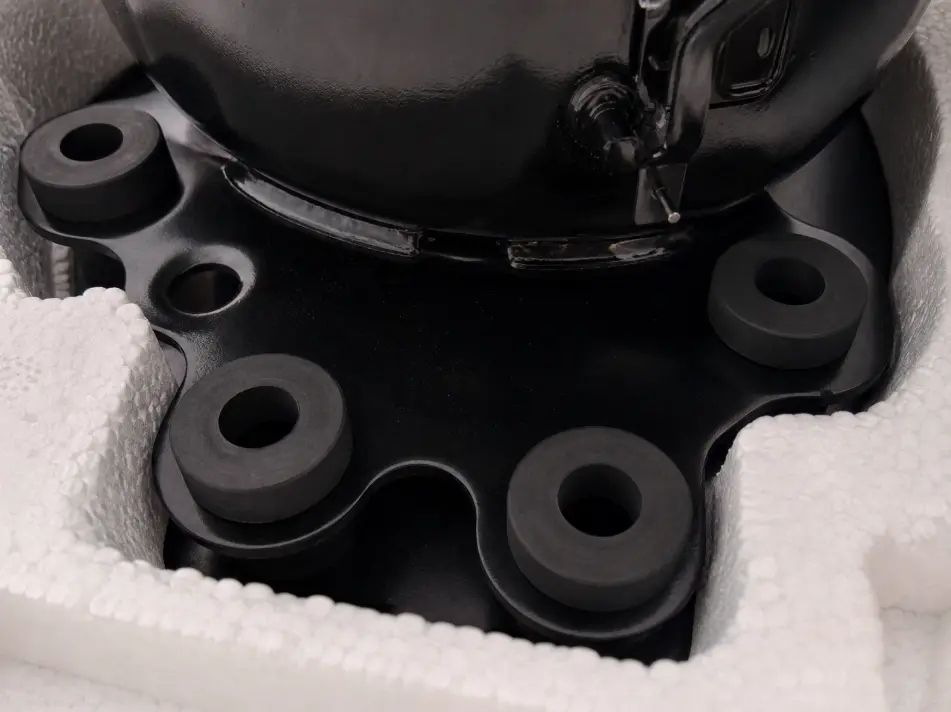

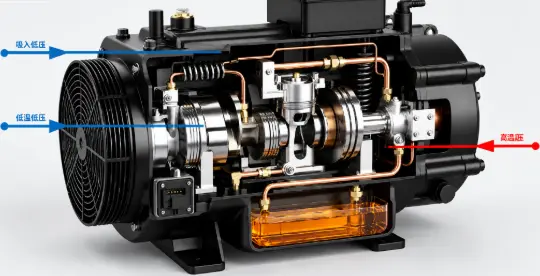

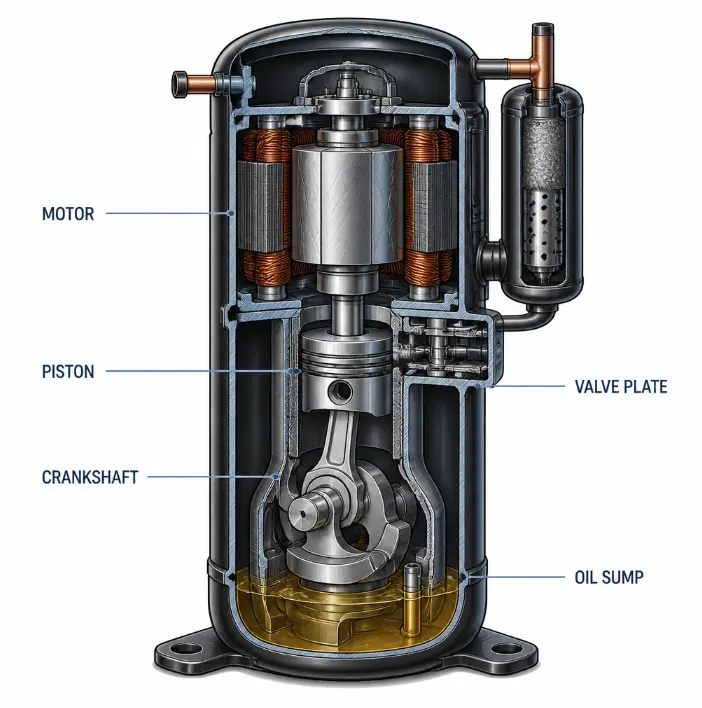

The fully enclosed refrigeration compressor integrates motor, crankshaft, piston compression mechanism and internal suspension shock absorption structure inside the sealed shell. The compact integrated design effectively prevents refrigerant leakage, reduces operating vibration and heat loss, guarantees continuous and stable compression work, and greatly improves the safety and reliability of the refrigeration host.

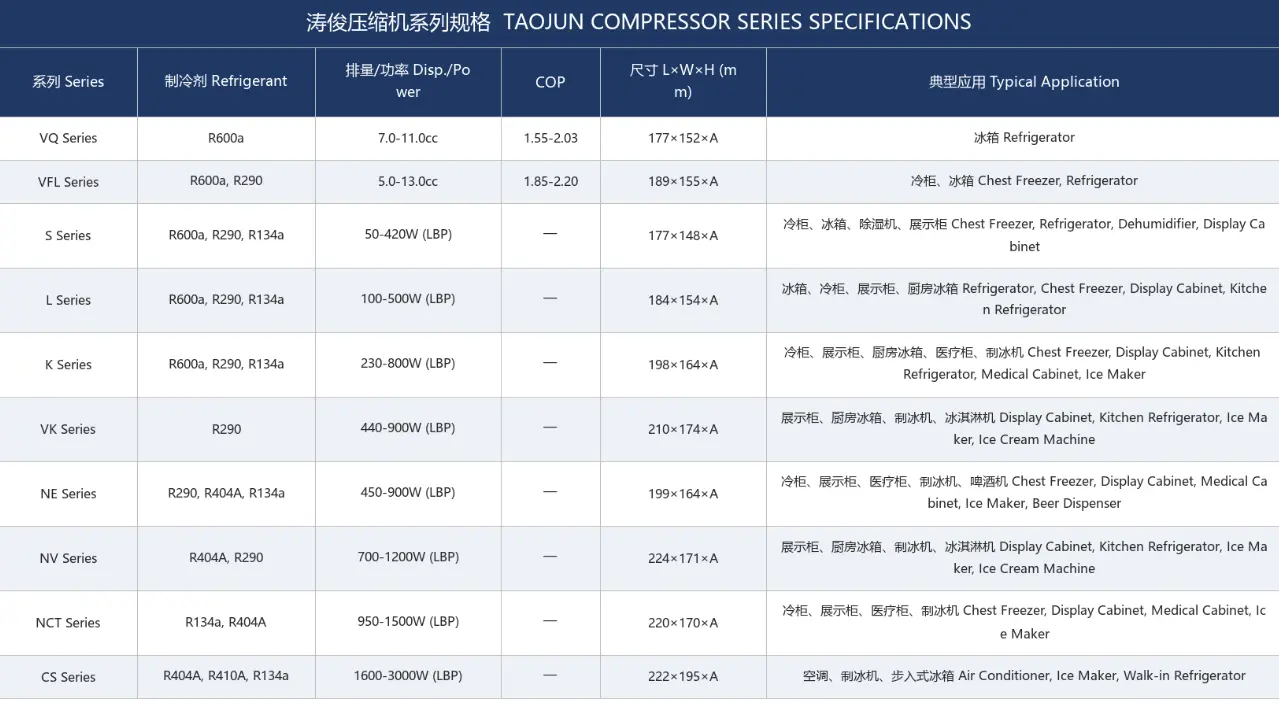

| Model No. | Compressor Type | Displacement (cc/rev) | Cooling Capacity (W) | Application Scenario | Refrigerant Type | Working Condition | Power Supply | Motor Type | Cooling Mode |
|---|---|---|---|---|---|---|---|---|---|
| Small Household Series | |||||||||
| VQ52XX | Inverter | 5.2 | 50~180 | Household refrigerator, small freezer | R600a/R134a | LBP/MBP | 220-240V/50Hz | RSIR | ST |
| VFL78XX | Inverter | 7.8 | 100~320 | Home refrigerator, dehumidifier | R600a/R134a | LBP/MBP | 220-240V/50Hz | RSCR | ST |
| A100XX | Fixed Speed | 10.0 | 200~400 | Chest freezer, display showcase | R600a/R134a | LBP/MBP | 220-240V/50Hz | CSIR | ST |
| S130XX | Fixed Speed | 13.0 | 300~500 | Small freezer, wine cooler | R600a/R134a | LBP/MBP | 220-240V/50Hz | CSR | ST |
| Medium Commercial Series | |||||||||
| K230XX | Fixed Speed | 16.0 | 230~500 | Kitchen fridge, beer cooler | R134a/R290 | MBP/HBP | 220-240V/50Hz | CSIR | ST/F |
| VK350XX | Inverter | 18.5 | 350~700 | Ice cream machine, medical cabinet | R134a/R290 | MBP/HBP | 220-240V/50Hz | RSCR | F |
| NE550XX | Fixed Speed | 22.0 | 550~900 | Ice maker, beverage cooler | R134a/R404A | MBP/HBP | 220-240V/50Hz | CSR | F |
| NV800XX | Inverter | 25.0 | 800~1200 | Medical pharmacy refrigerator | R134a/R404A | MBP/HBP | 220-240V/50Hz | RSIR | F |
| High-Power Commercial Series | |||||||||
| NCT950XX | Fixed Speed | 32.0 | 950~1800 | Walk-in cold room, air conditioner | R404A/R410A | LBP/MBP/HBP | 220-240V/50Hz | CSR | F |
| CS2000XX | Fixed Speed | 40.0 | 2000~3000 | Large ice making equipment | R404A/R410A | LBP/MBP/HBP | 220-240V/50Hz | CSR | F |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our compressors efficiently compress various refrigerants including R600a, R134a, R290, and R404a depending on the specific model requirements.
They are widely used as the core power assembly in household refrigerators, freezers, commercial kitchen chillers, beverage displays, ice makers, and walk-in cold rooms.
Inverter models dynamically adjust compression speeds for higher energy efficiency (COP) and lower noise, whereas fixed-speed models offer reliable, steady cooling output at a highly cost-effective entry point.
Yes. While we have standard matching sizes for each compressor model, custom specifications can be manufactured based on your project requirements.

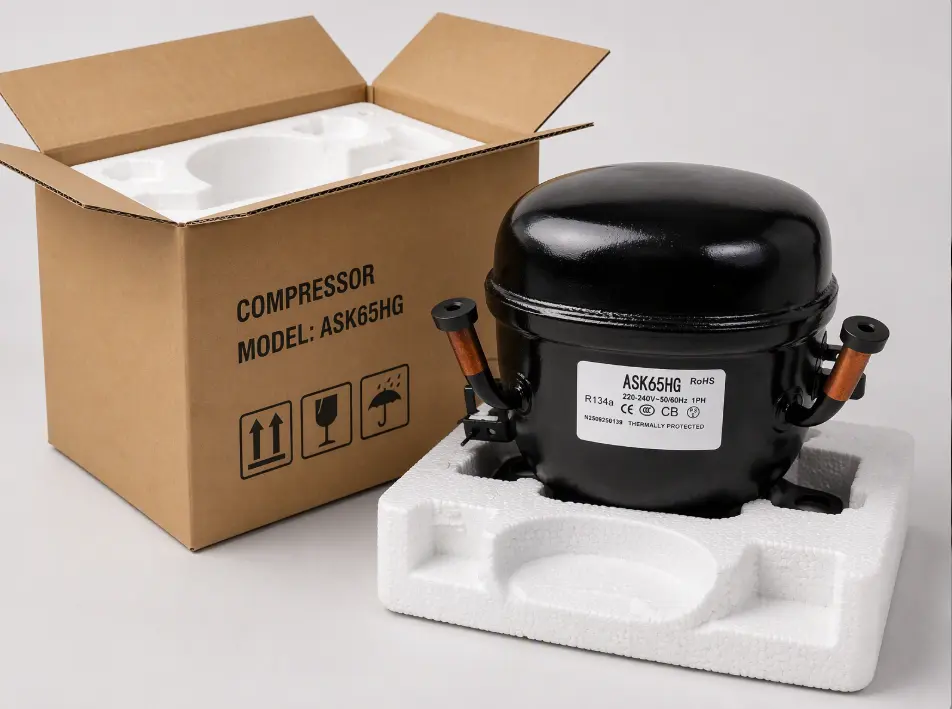

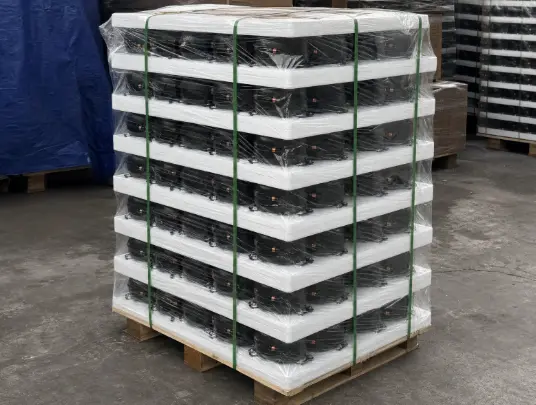

We use professional, environmentally friendly, and robust palletized packaging to securely bundle and support each unit, preventing shifting and vibrations during international transit.
Yes, all of our products go through rigorous testing and hold various industry patents and standards compliance certificates to ensure quality, efficiency, and reliability.
