| Parameter | Details |
|---|---|
| Material | Metal (core components) + engineered plastic |
| Pressure Rating | 500 psi (35 kg/cm²) |
| Port Type | Single gauge port (HP/LP monitoring) |
| Refrigerants | R12, R22, R410A, R134A, R502 |
| Operation | Manual shut-off, tool-free installation |
| Certifications | Pressure-tested, leak-proof verified |

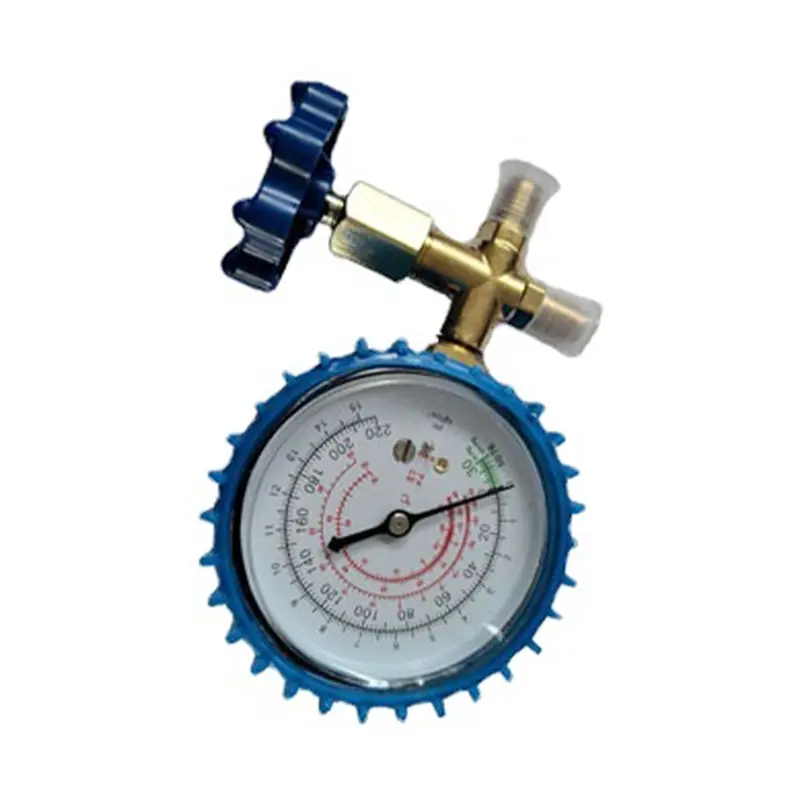

The Single Gauge Valve delivers precision, durability, and adaptability for technicians and manufacturers seeking to enhance system control. With multiple models to suit diverse piping configurations, it’s the go-to choice for efficient refrigeration and HVAC operations.
| Model | Body Diameter (mm) | Total Length (mm) | Inlet Inner Diameter (mm) | Outlet Inner Diameter (mm) |
|---|---|---|---|---|
| TJK-15 | 19 | 115 ±2 | 6.5 / 5 | 2.5 |
| TJK-20 | 19 | 140 ±2 | 6.5 | 2.5 |
| TJK-30 | 24 | 140 ±2 | 6.5 | 2.5 |
| TJK-40 | 24 | 170 ±2 | 6.5 | 2.5 |
Note: Specifications may vary slightly based on application requirements.
The valves are rated for a high pressure of up to 500 psi (35 kg/cm²), which allows them to operate reliably in highly demanding refrigeration and HVAC environments.
These valves offer multi-refrigerant compatibility and work seamlessly with R12, R22, R410A, R134A, R502, and other common refrigerants.
Our valves utilize a triple-sealed design combined with precision machining to prevent refrigerant leaks, ensuring high security and system integrity.
Yes, we provide several model variants (TJK-15, TJK-20, TJK-30, and TJK-40) with varying body diameters, lengths, and inlet/outlet diameters to fit your specific system needs.
Yes. The valve features a spring-loaded valve core and an adjustable stem that simplify maintenance, enabling quick field repairs and manual pressure adjustments.
The valve features a robust hybrid construction that combines corrosion-resistant metal for the core components and engineered plastic for durability and ease of handling.
