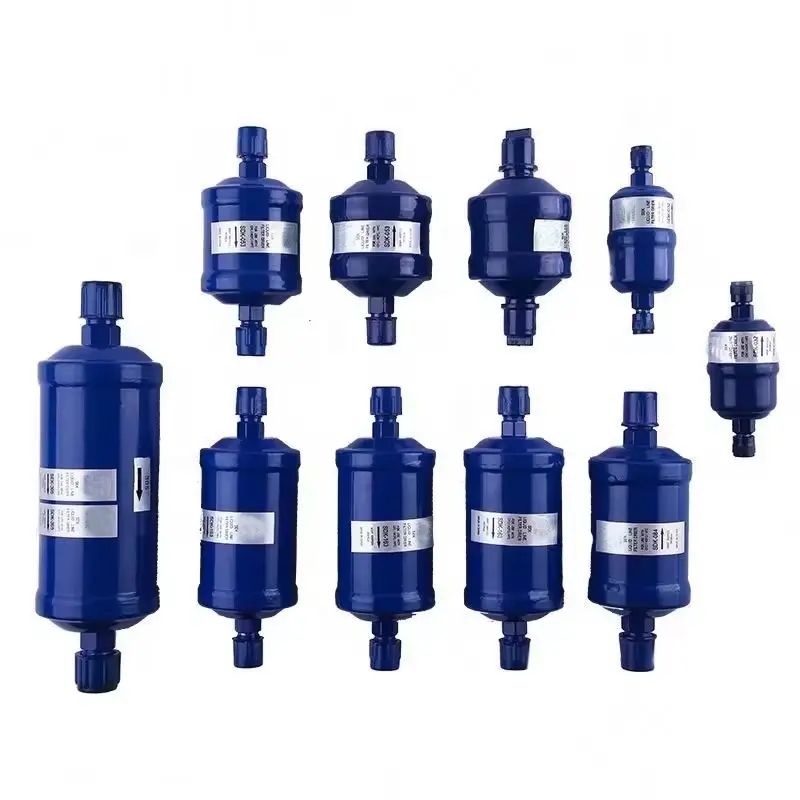

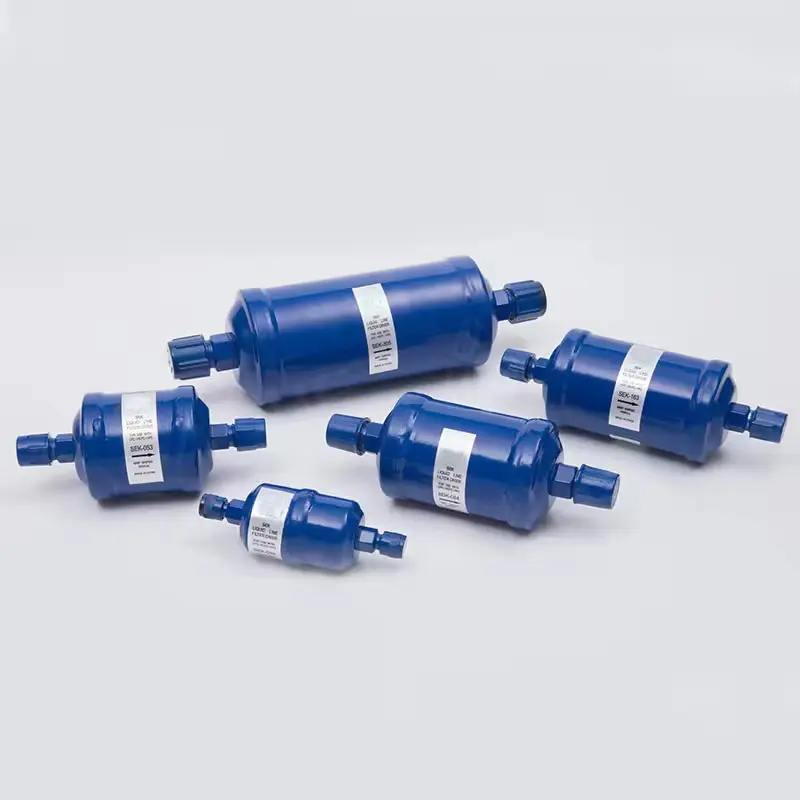

Molecular sieve is a synthetic compound with microporous cubic crystal hole structure, which can absorb residual water in refrigeration system and allow refrigerant to pass through normally.

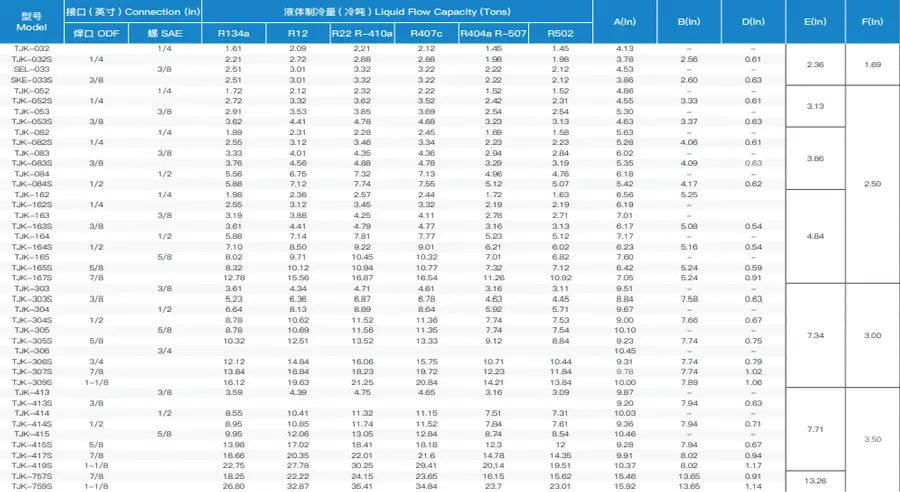

Note: all sizes are standard, other sizes can be made on request.

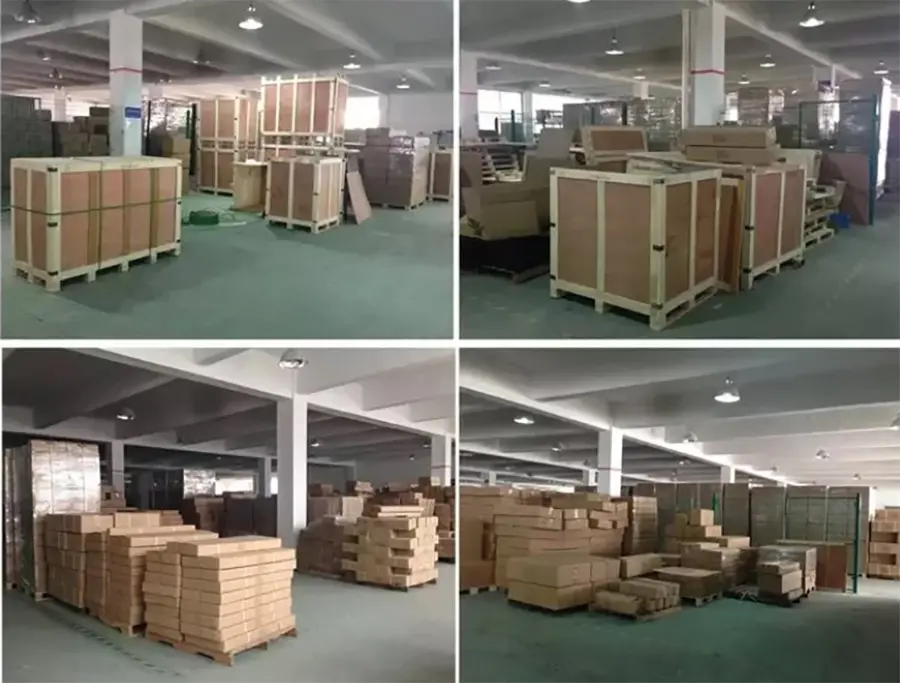

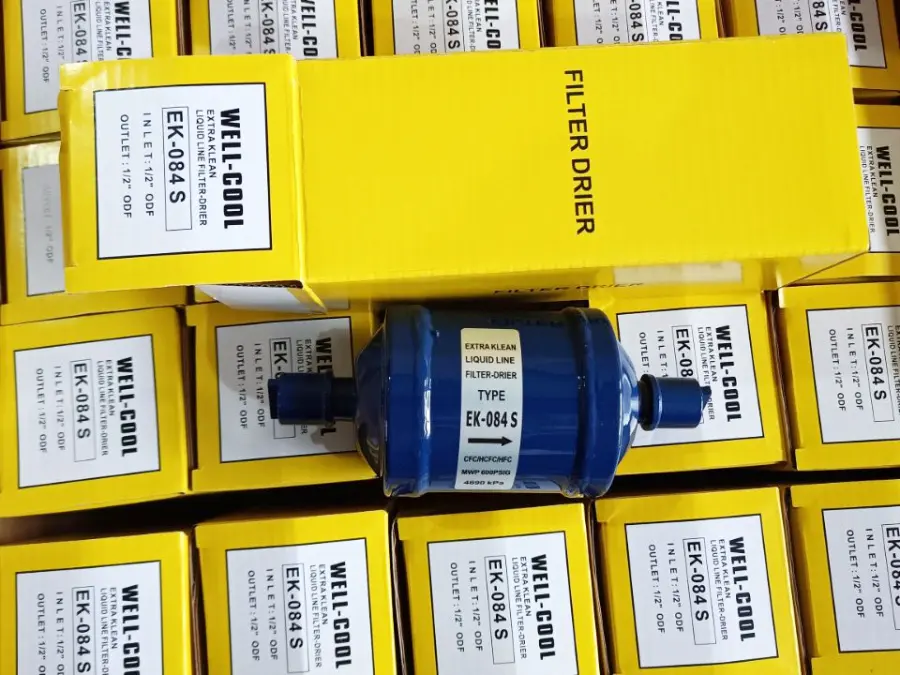

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
The molecular sieve is designed to absorb residual water and moisture within the refrigeration system while allowing the refrigerant to pass through normally. This prevents ice blockage and system contamination.
They are compatible with a wide range of refrigerants, including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
The maximum working pressure is 4.7Mpa or 680Psig, and the product is fully certified with UL and CE standards.

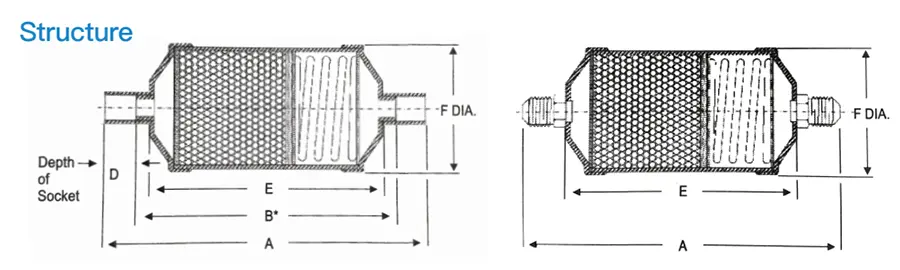

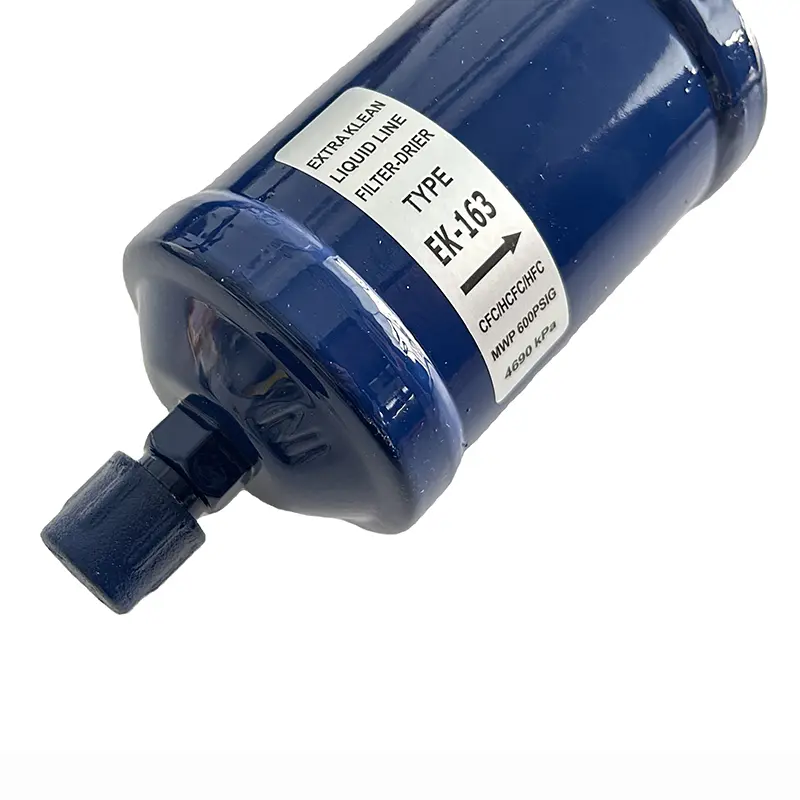

The shell is constructed from high-purity copper pipe for rust and pressure resistance. The inner core consists of a 3A molecular sieve with water absorption of 20% or more, combined with an activated carbon layer. The assembly is sealed using argon arc welding to prevent leaks.

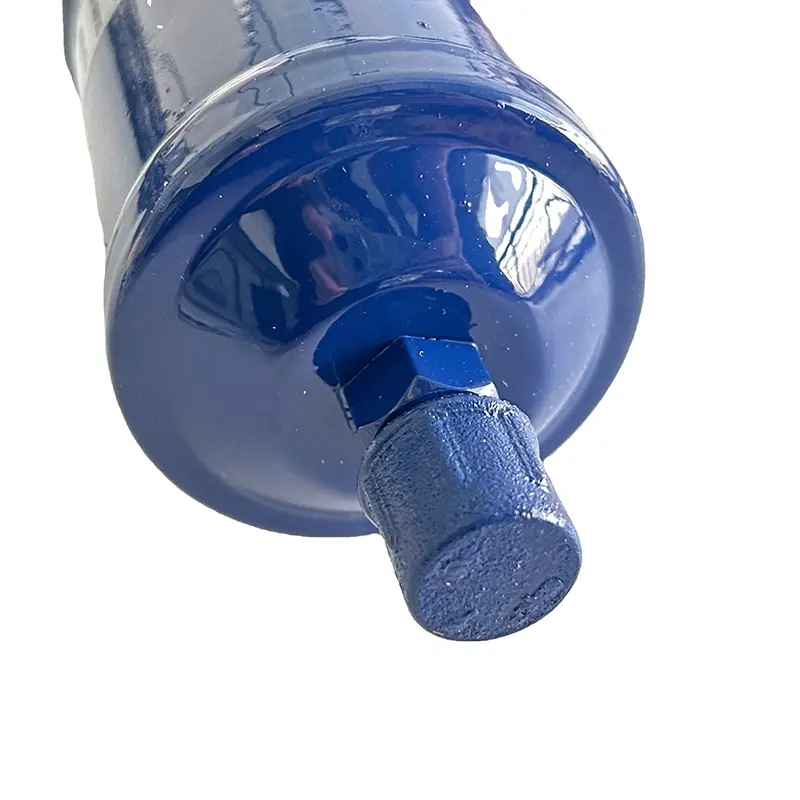

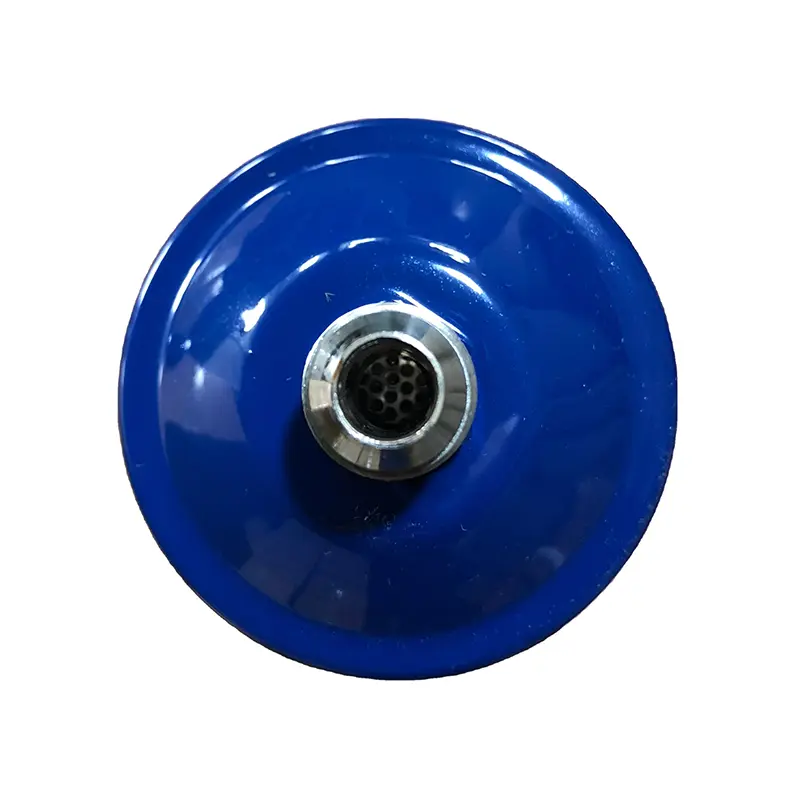

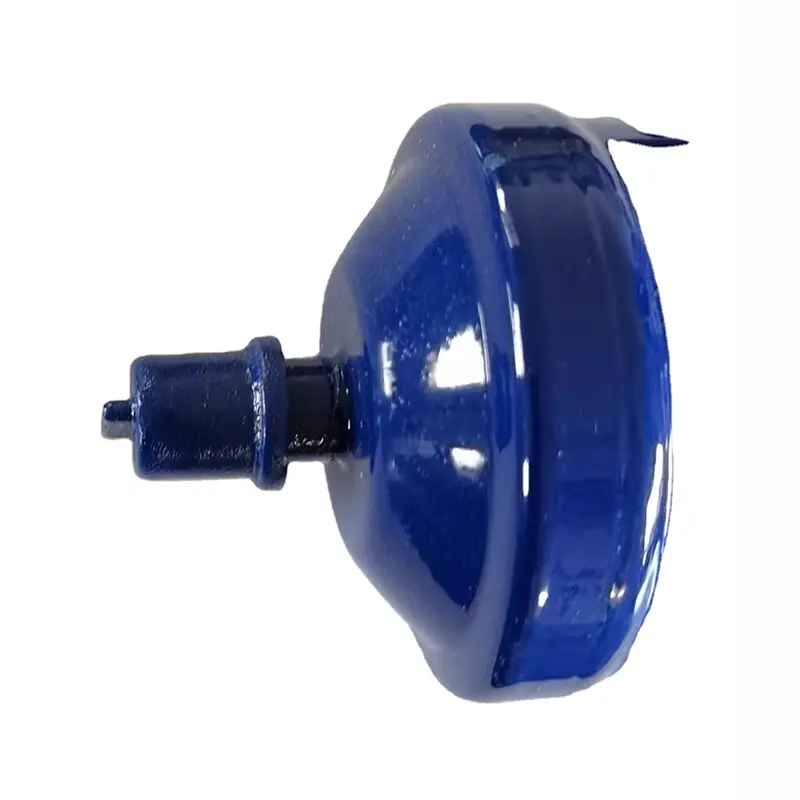

The filter drier is available with two connection types: ODF and SAE. The ODF connection adopts TP2 copper reserve to facilitate easier and more reliable welding.
It allows installation in any orientation, provided that the flow arrow on the body points in the direction of the system's refrigerant flow.
