Molecular sieve is a synthetic compound with microporous cubic crystal hole structure, which can absorb residual water in refrigeration system and allow refrigerant to pass through normally.
| item | value |
|---|---|
| type | Filter Drier |
| weight (kg) | 0.078 |
| warranty | 3years |
| application | Refrigeration Parts |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| place of origin | China |
| Material | Copper, Brass |

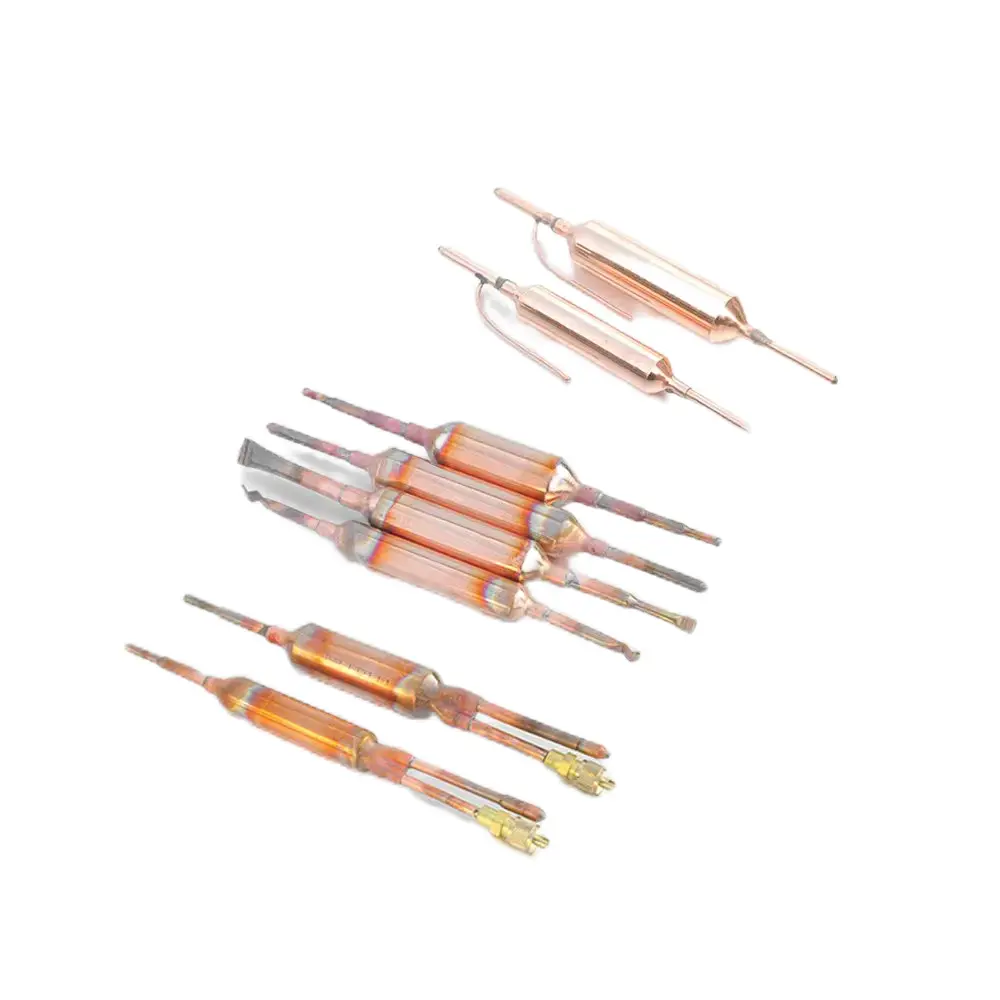

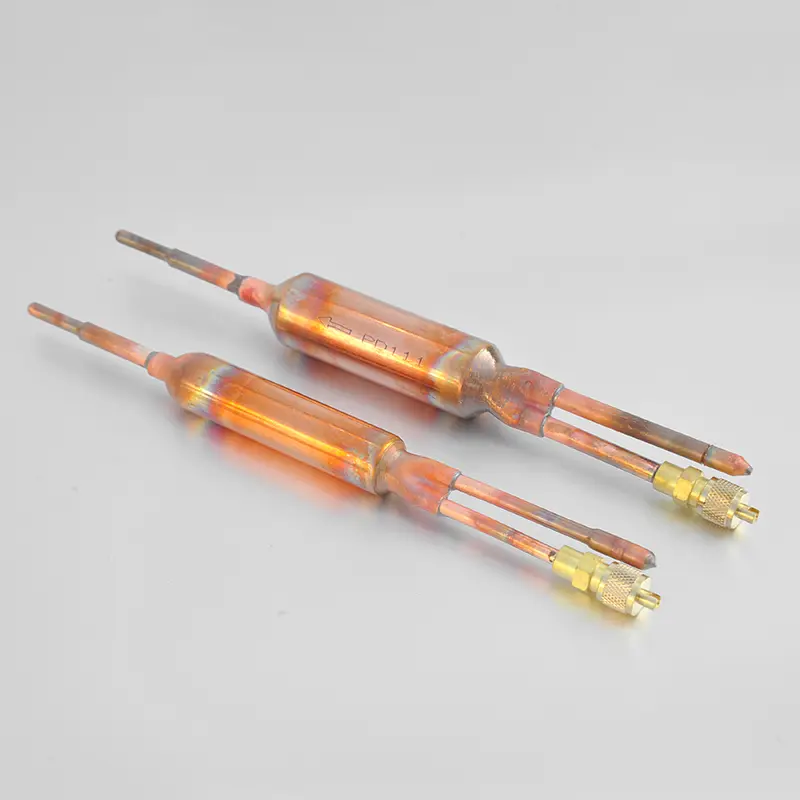

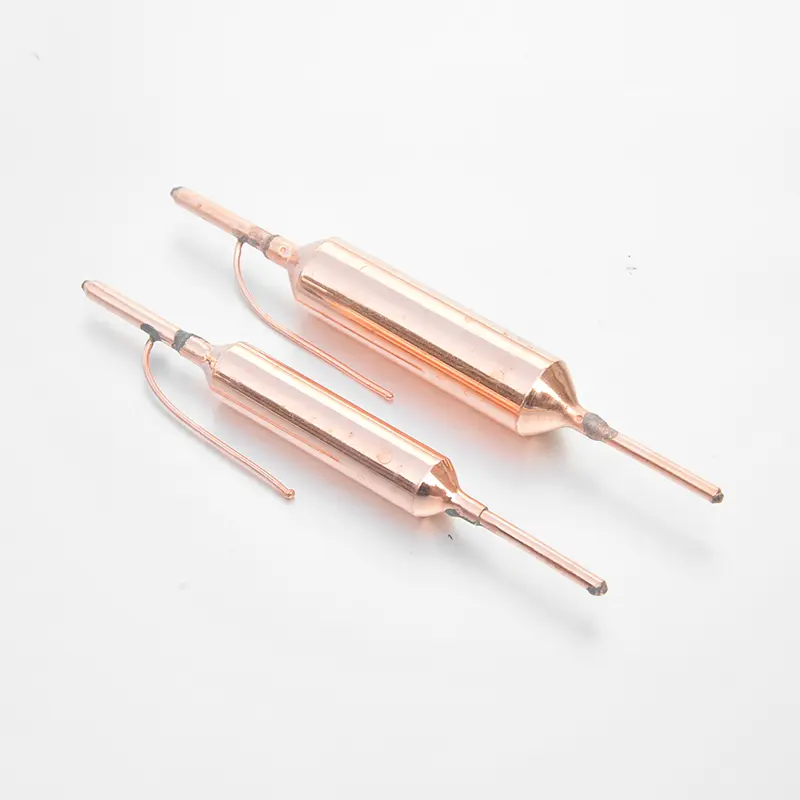

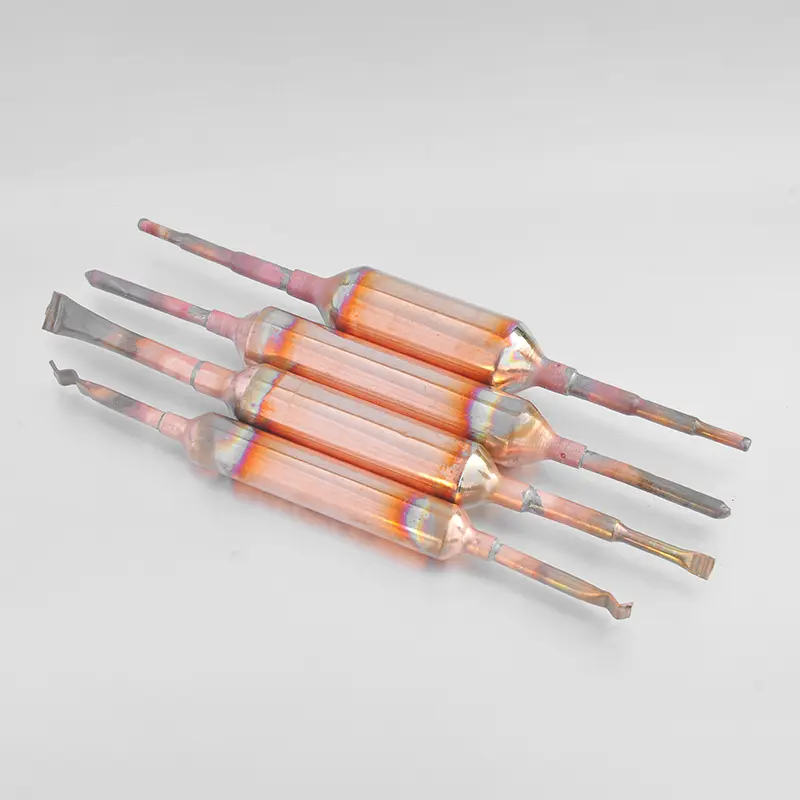

Feature: Copper filter driers are designed to absorb moisture and acid, and to filter out impurities. Normally be instead as component and replaced as repair part for both domestic and commercial refrigerators, freezers.
| Model | Molecular sieves +5,-0% | Body diameter ±2 | Total length ±2 | Outlet Extension Length +2(mm) | Inlet A | Inlet B |
|---|---|---|---|---|---|---|
| TJC10-AV | 10 | 16 | 115 | 4.76*50mm | 6.35*50mm | 6.35*50mm |
| TJC15-AV | 15 | 19 | 115 | 6.35*50mm | 6.35*50mm | 6.35*50mm |
| TJC20-AV | 20 | 19 | 140 | 6.35*50mm | 6.35*50mm | 6.35*50mm |
| TJC25-AV | 25 | 25 | 120 | 6.35*50mm | 6.35*50mm | 6.35*50mm |
| TJC30-AV | 30 | 25 | 140 | 6.35*50mm | 6.35*50mm | 6.35*50mm |
| Model | Molecular sieves +5%,-0% | Body diameter +2 | Total length ±2 | Inlet (Inner Dia) +0.1 | Outlet (Out Dia) +0.1 |
|---|---|---|---|---|---|
| TJC10 | 10 | 19 | 115 | 6.35mm | 6.35mm |
| TJC10 | 10 | 19 | 105 | 6.35mm | 6.35mm |
| TJC15 | 15 | 19 | 115 | 6.35mm | 6.35mm |
| TJC15 | 15 | 19 | 120 | 6.35mm | 6.35mm |
| TJC20 | 20 | 19 | 140 | 6.35mm | 6.35mm |
| TJC20 | 20 | 24 | 120 | 6.35mm | 6.35mm |
| TJC25 | 25 | 24 | 130 | 6.35mm | 6.35mm |
| TJC30 | 30 | 24 | 140 | 6.35mm | 6.35mm |
| TJC40 | 40 | 24 | 150 | 6.35mm | 6.35mm |
| TJC50 | 50 | 30 | 170 | 6.35mm | 6.35mm |
Note: all size are standard, other size can be made on request.

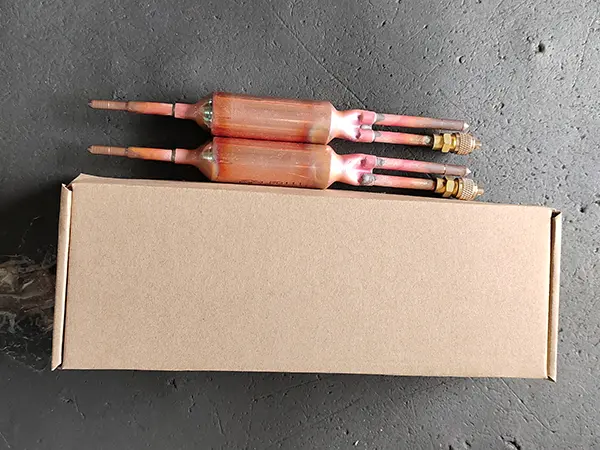

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
