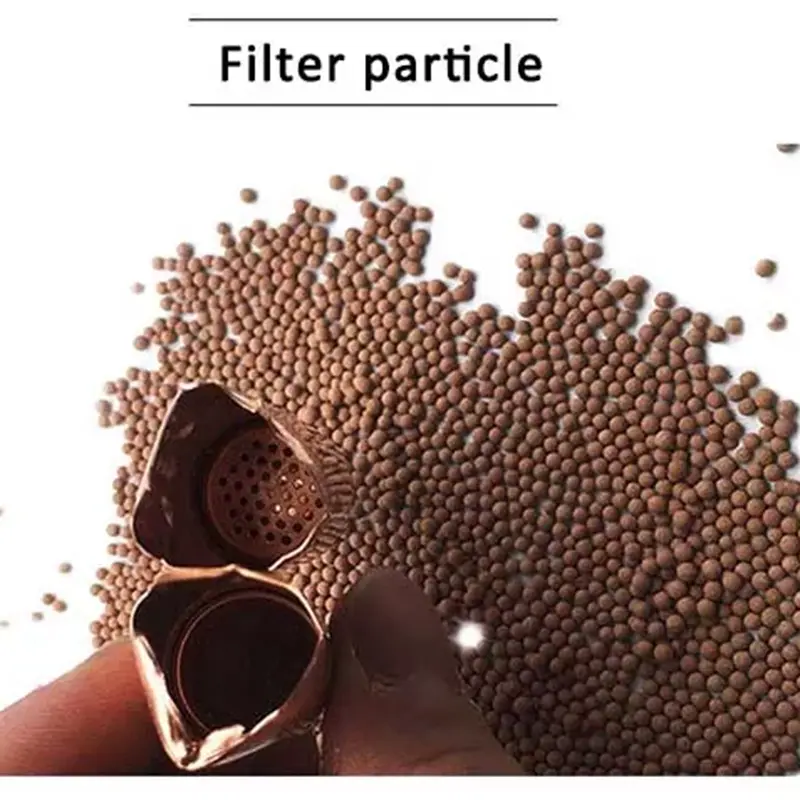

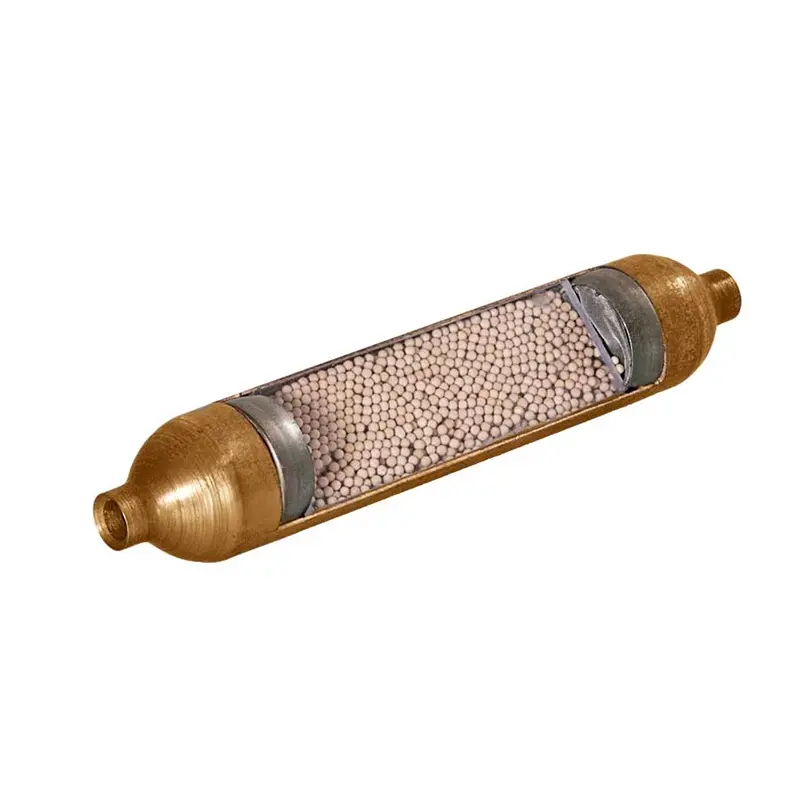

Molecular sieve is a synthetic compound with microporous cubic crystal hole structure, which can absorb residual water in refrigeration system and allow refrigerant to pass through normally.

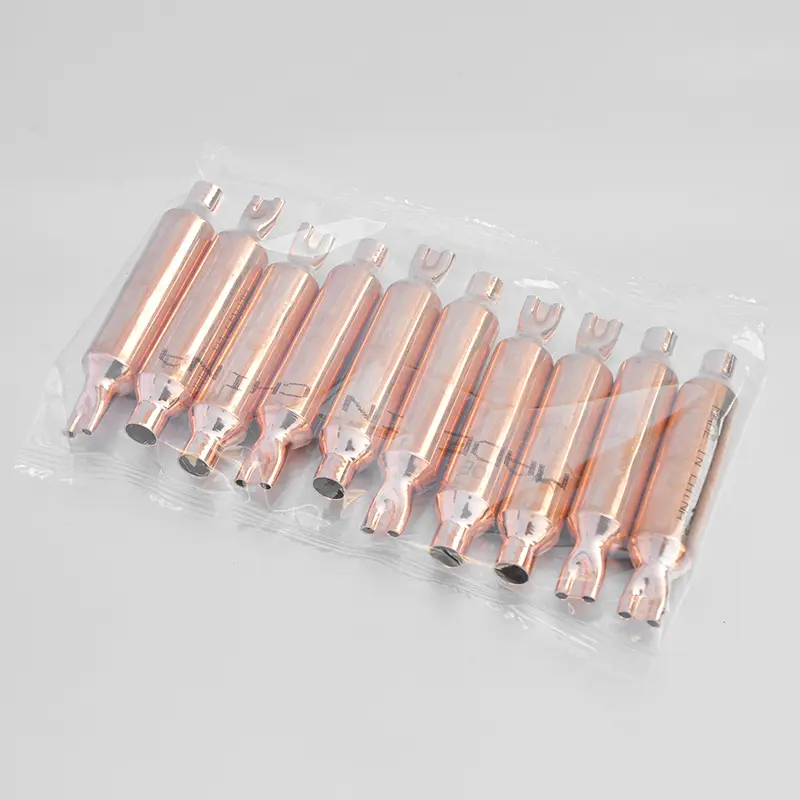

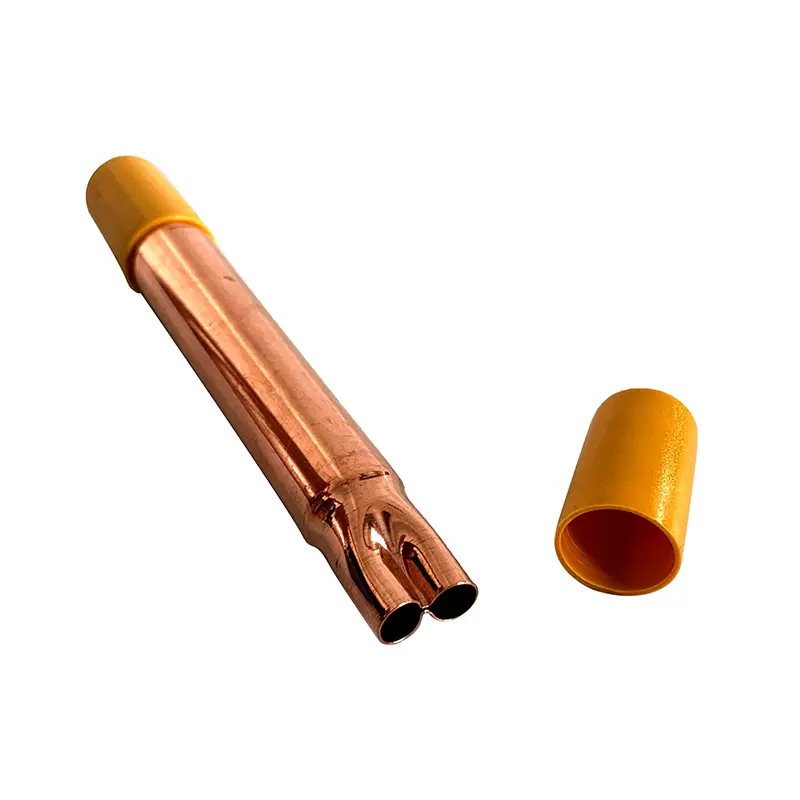

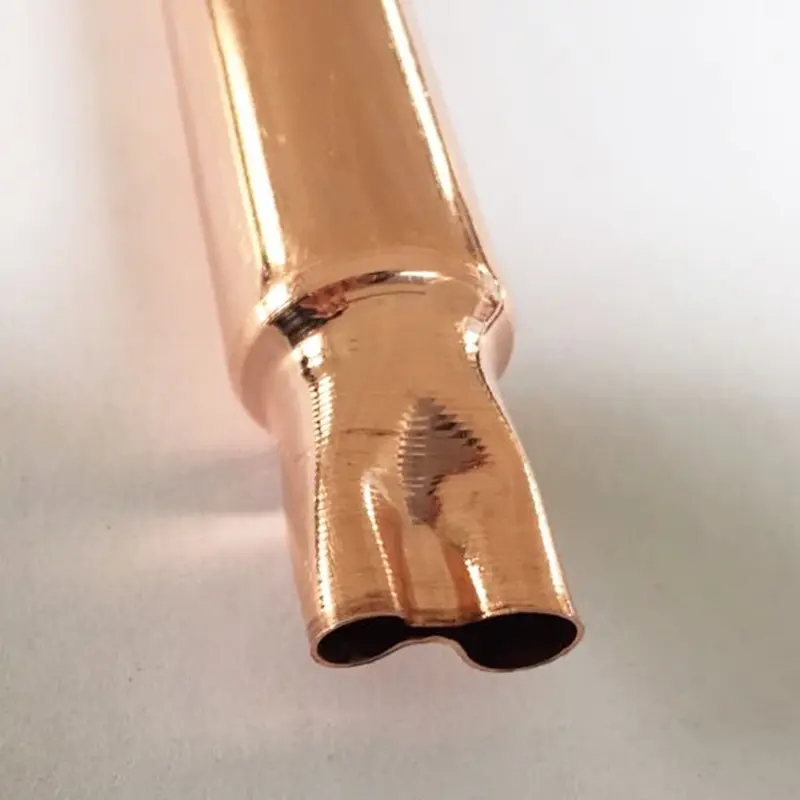

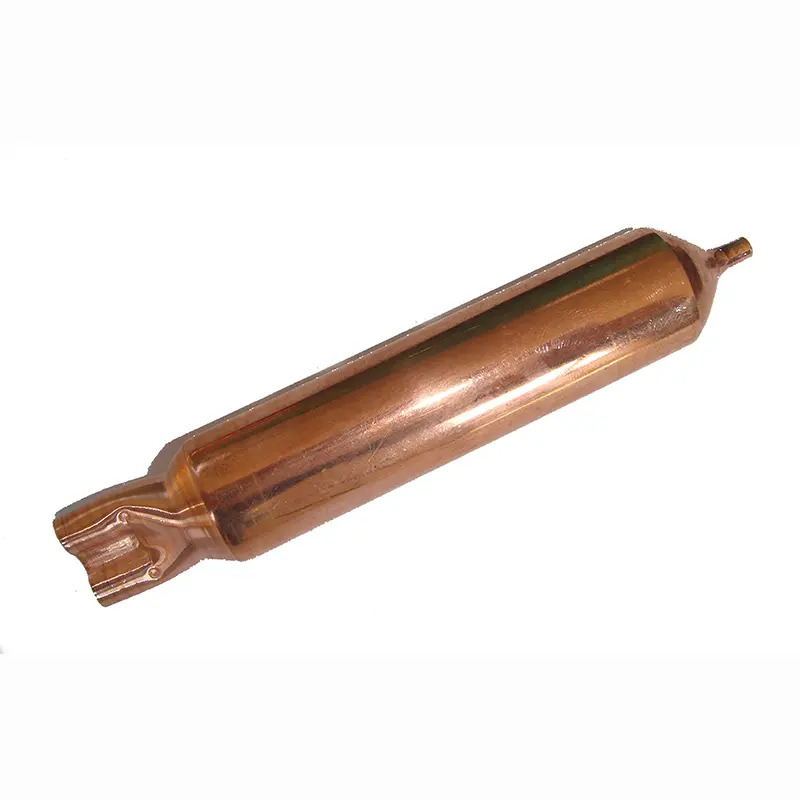

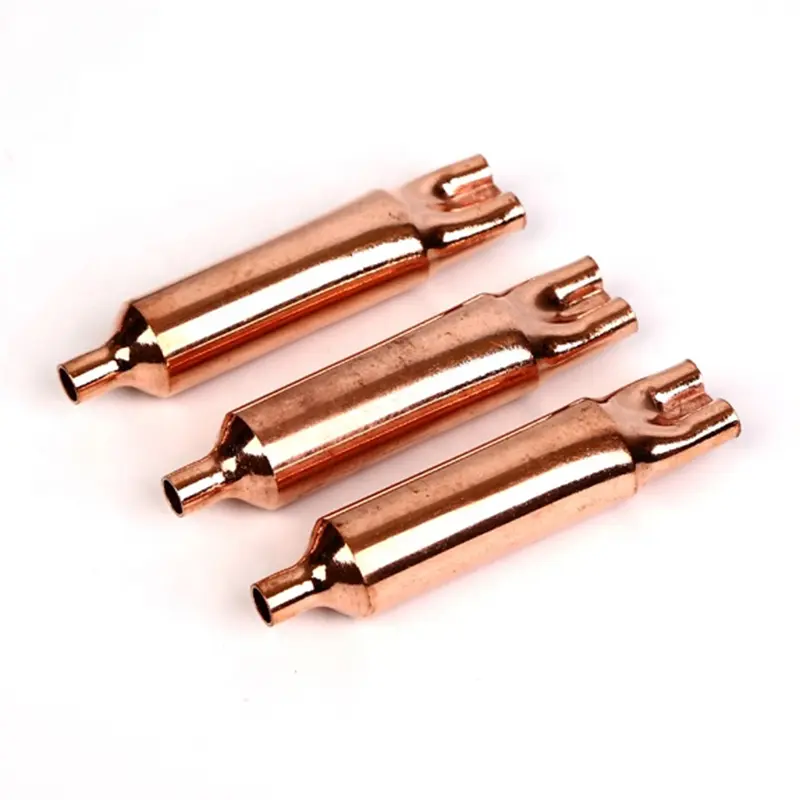

Our copper filter driers are designed to absorb moisture and acid, and to filter out impurities. Normally be instead as component and replaced as repair part for both domestic and commercial refrigerators, freezers.
1. Structure and material
2. Core strengths
3. Application scenario
One: Absorbing moisture, preventing acids
Two: Providing physical filtration
Raw material:

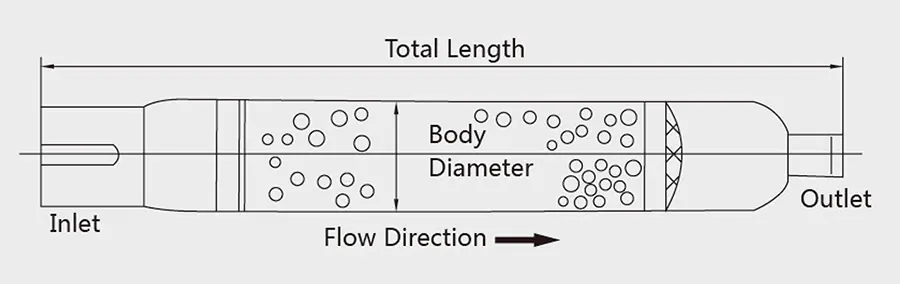

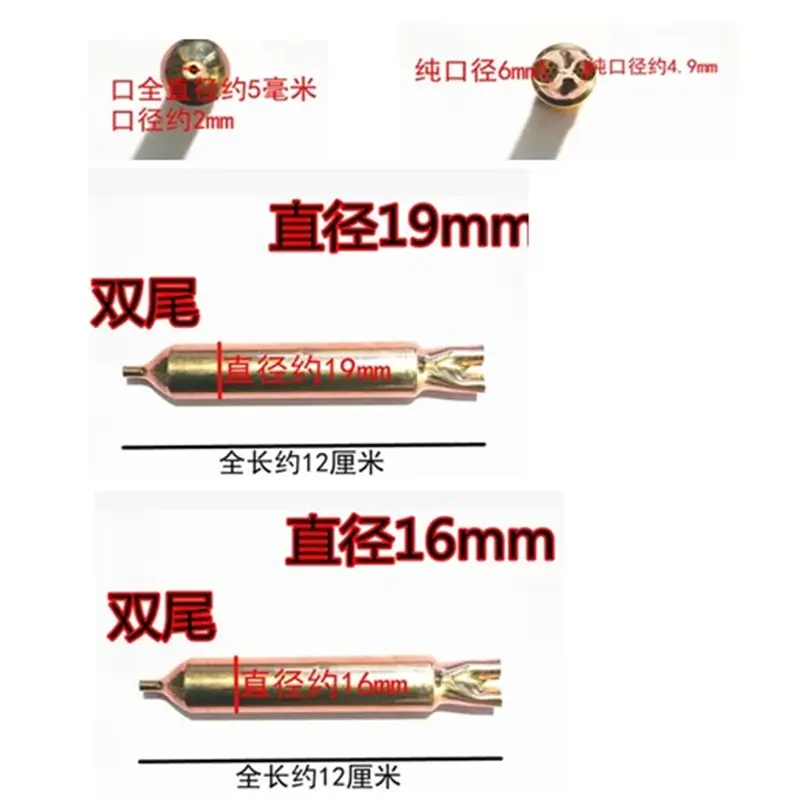

| Model | Molecular sieves +5%,-0% | Body diameter +2 | Total length ±2 | Inlet (Inner Dia)+0. | Outlet (Out Dia)+0.1 |
|---|---|---|---|---|---|
| TJB10 | 10 | 16 | 118 | 5*6.4mm | 2.5mm |
| TJB10 | 10 | 16 | 118 | 6.35*6.35mm | 3.3mm |
| TJB8 | 8 | 19 | 90 | 6.35*6.35mm | 3.3mm |
| TJB10 | 10 | 19 | 95 | 5*6.4mm | 3.2mm |
| TJB15 | 15 | 19 | 120 | 5*6.2nmn | 2.5mm |
| TJB15 | 15 | 19 | 120 | 6.35*6.35mm | 3.3mm |
| TJB15 | 15 | 19 | 120 | 6.35*6.35mm | 3.2mm |
| TJB20 | 20 | 19 | 150 | 5*6.2mm | 2.5mm |
| TJB25 | 25 | 25 | 130 | 6.35*6.35mm | 3.2mm |
| TJB30 | 30 | 25 | 140 | 6.35*6.35mm | 3.2mm |
Note: all sizes are standard, other sizes can be made on request.

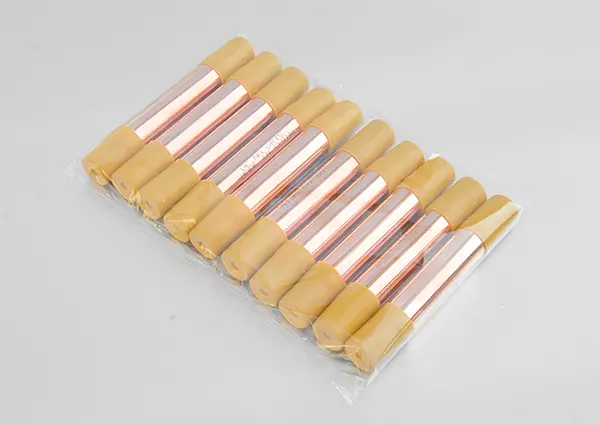

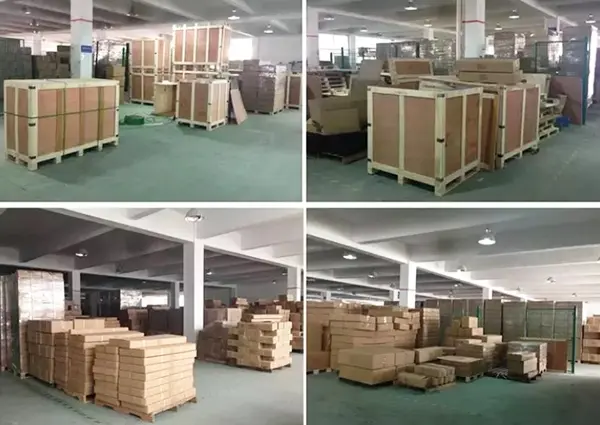

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
