1. Household Air Conditioning
2. Commercial Air Conditioning
3. Industrial Air Conditioning
The air-conditioning fan can promote air flow with high efficiency, achieving rapid indoor air circulation. Through the reasonable design of the impeller and the motor, it can generate sufficient air volume to quickly deliver the cold or hot air treated by the air conditioner to every corner of the room. This enables the temperature to quickly reach the set value and maintain a uniform temperature distribution.
To provide a comfortable indoor environment, the air-conditioning fan usually features low noise during operation. By using high-quality silent materials, optimizing the fan's structural design, and conducting precise dynamic balance debugging, the vibration and noise generated during the fan's operation are effectively reduced.
The air-conditioning fan has an excellent speed-adjustment function, which can flexibly adjust the air volume according to the actual needs of the indoor environment. For example, when the indoor load is low, the fan can reduce its rotation speed and air volume to save energy and avoid over-cooling or over-heating. When the indoor load is high, the fan can increase its rotation speed and air volume to quickly adjust the indoor temperature.

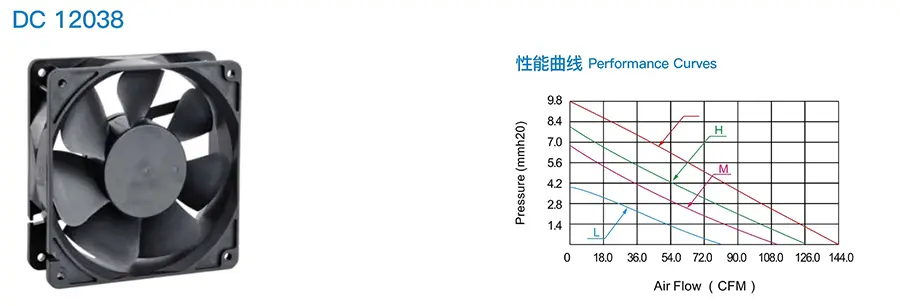

| Listed Model | Rated Voltage | Operating Voltage | Rated Current | Rated Speed | Air Flow | Static Pressure | Noise Level | Available Features (Optional) | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VAC | VAC | A | RPM | CFM | mmH2O | dBA | Tachometer Output | Rotation Detector | Thermal Control | Pulse Width Modulation | g | |
| 123812D | 12 | 6.0~13.8 | 1.00 | 3,500 | 143.40 | 9.30 | 51.00 | / | / | / | / | 265 |
| 123812H | 6.0~13.8 | 0.60 | 3,000 | 126.20 | 7.80 | 47.00 | / | / | / | / | ||
| 123812M | 6.0~13.8 | 0.45 | 2,700 | 113.30 | 6.50 | 44.00 | / | / | / | / | ||
| 123812L | 6.0~13.8 | 0.30 | 2,000 | 83.20 | 3.70 | 37.00 | / | / | / | / | ||
| 123824D | 24 | 12.0~27.6 | 0.60 | 3,500 | 143.40 | 9.30 | 51.00 | / | / | / | / | |
| 123824H | 12.0~27.6 | 0.40 | 3,000 | 126.20 | 7.80 | 47.00 | / | / | / | / | ||
| 123824M | 12.0~27.6 | 0.25 | 2,700 | 113.30 | 6.50 | 44.00 | / | / | / | / | ||
| 123824L | 12.0~27.6 | 0.20 | 2,000 | 83.20 | 3.70 | 37.00 | / | / | / | / | ||
| 123848D | 28 | 24.0~55.2 | 0.30 | 3,500 | 143.40 | 9.30 | 51.00 | / | / | / | / | |
| 123848H | 24.0~55.2 | 0.20 | 3,000 | 126.20 | 7.80 | 47.00 | / | / | / | / | ||
| 123848M | 24.0~55.2 | 0.15 | 2,700 | 113.30 | 6.50 | 44.00 | / | / | / | / | ||
| 123848L | 24.0~55.2 | 0.10 | 2,000 | 83.20 | 3.70 | 37.00 | / | / | / | / | ||
X=S:Sleeve Bearing or B:Ball Bearing or H:Hydro Bearing; Specifications are subject to change without notice

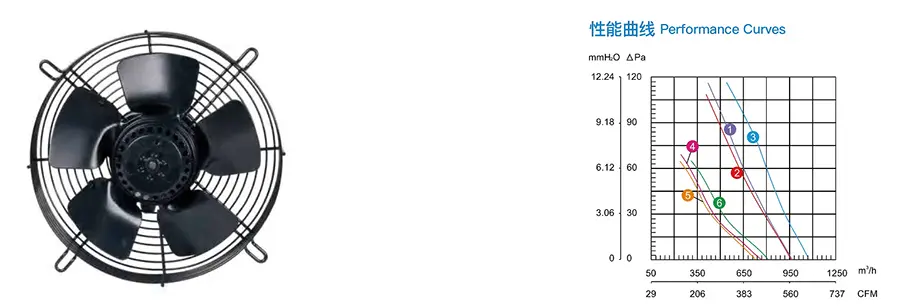

| Type | VOLTAGE | FREQUENCY | CURRENT | INPUT | SPEED | AIR FLOW | CAPACITANCE | NOISE | CAPACITANCE (Optional) | NOISE (Cert) |
|---|---|---|---|---|---|---|---|---|---|---|
| YWF 2D-250S | 380 | 50 | 0.22 | 80 | 2500 | 970/579 | / | 60 | ① | CCC CE |
| YWF 2E-250S | 220 | 50 | 0.40 | 80 | 2400 | 960/569 | 3 | 60 | ② | CCC CE |
| 120 | 60 | 0.95 | 120 | 2850 | 1070/648 | 10 | 60 | ③ | CCC CE | |
| YWF 4D-250S | 380 | 50 | 0.17 | 60 | 1400 | 770/418 | / | 55 | ④ | CCC CE |
| YWF 4E-250S | 220 | 50 | 0.23 | 50 | 1380 | 730/388 | 2 | 55 | ⑤ | CCC CE |
| 120 | 60 | 0.55 | 65 | 1600 | 800/459 | 8 | 55 | ⑥ | CCC CE |
These fans are highly versatile and engineered for use across household, commercial, and industrial air conditioning systems, ensuring optimized air circulation in any environment.

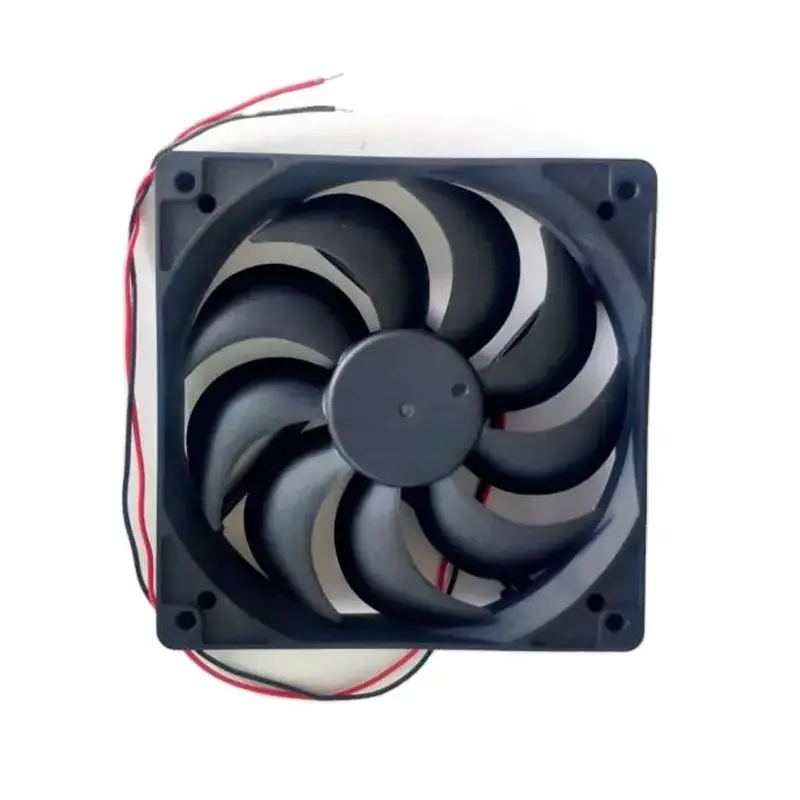

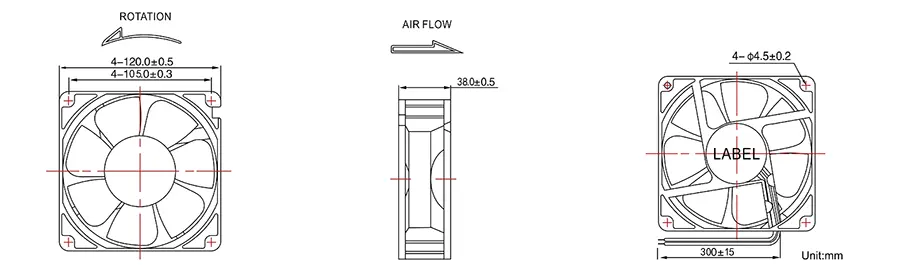

The FAN DC 12038 supports both Sleeve Bearings and Ball Bearings, allowing you to choose the ideal component based on your longevity and operational requirements.

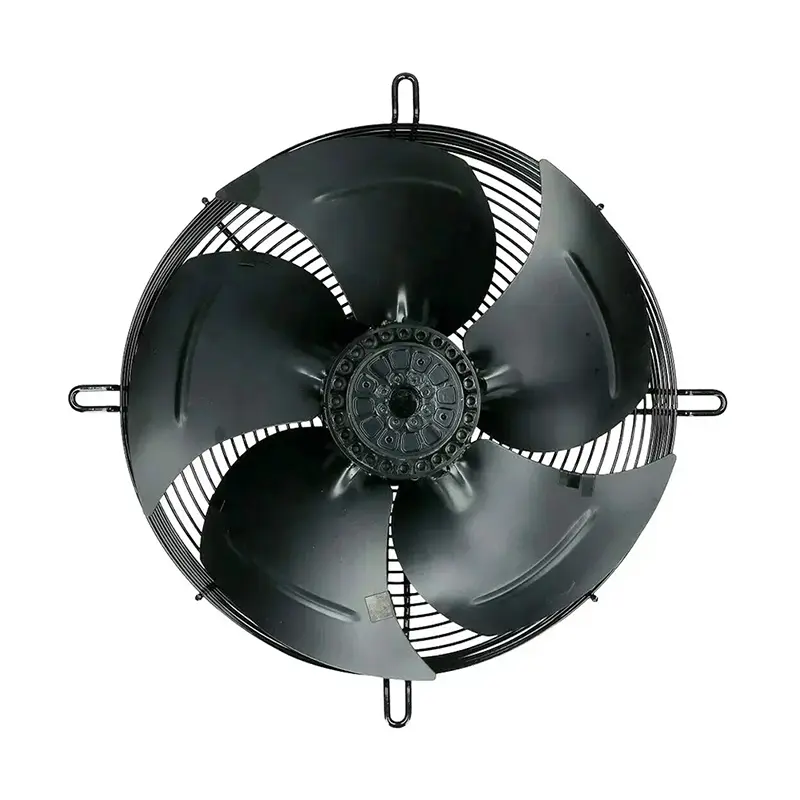

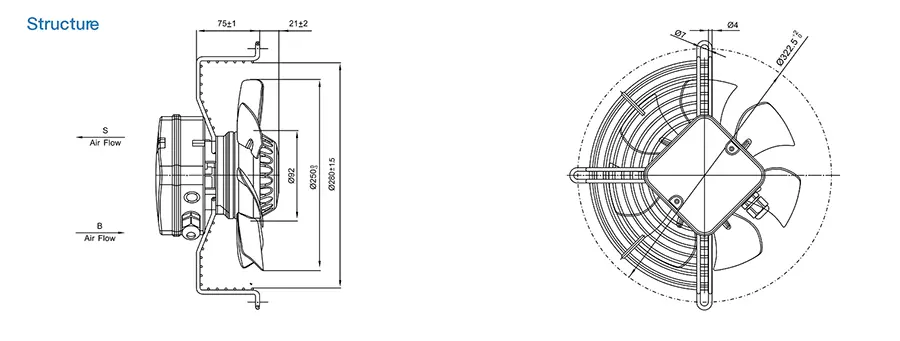

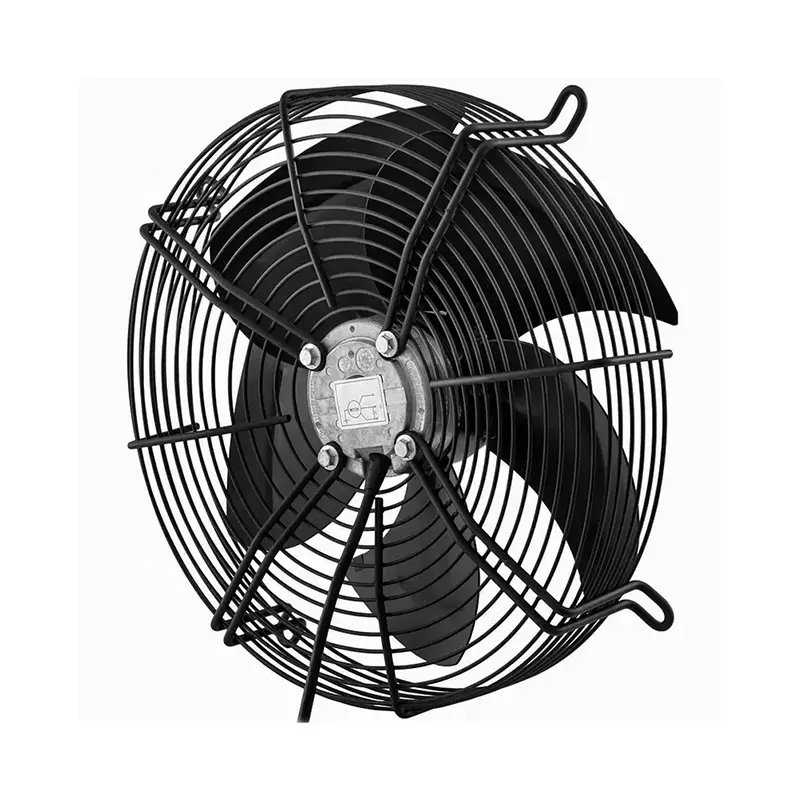

The fan blades of the YWF series are constructed from high-quality, cold-rolled steel plate, providing superior durability and structural integrity.
Our YWF series axial fans are fully compliant with CCC and CE certification standards, meeting stringent safety and performance guidelines.
By combining premium silent materials, optimizing the fan blade and frame design, and conducting precise dynamic balance debugging, we minimize vibration and operational noise.
